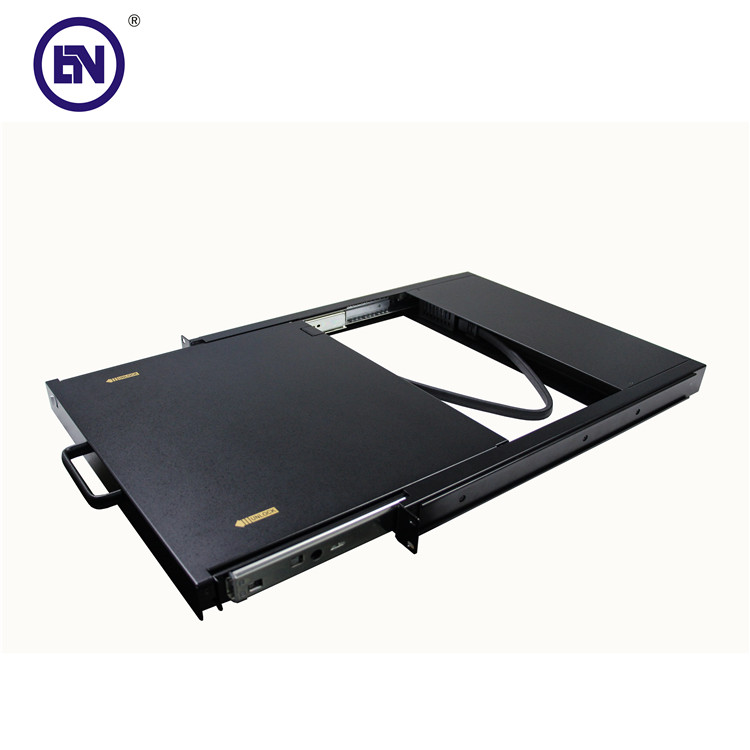

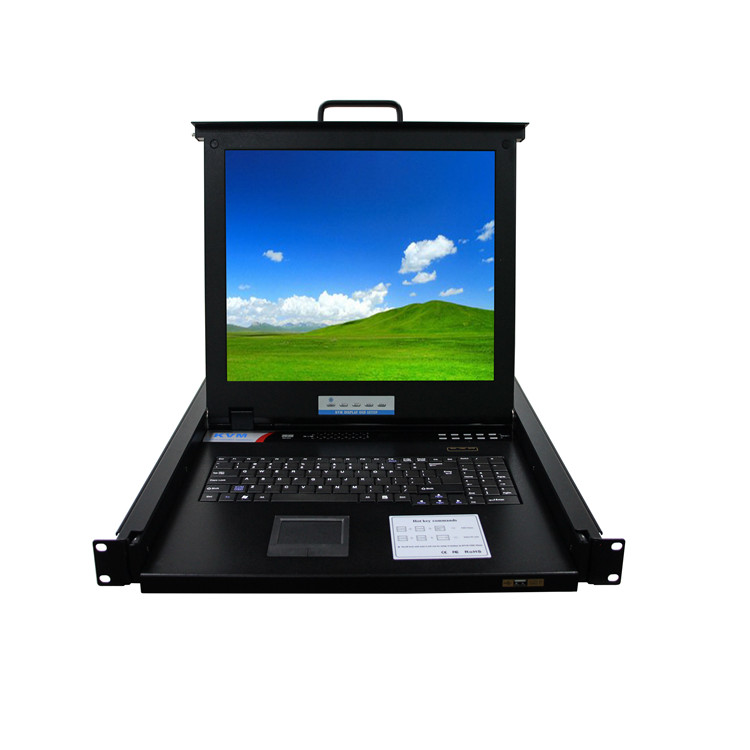

Factory supply 8 port cat5 1u rack console KVM switch with 19 inch LCD IP remote access
Product Description
Specification
Model | BN-KVM1916C-IP | BN-KVM-1716C | |
Computer connect | Direct : 16 (Max:512) | ||
Keyboard | 104 Mechanical mute Keyboard | 104 Mechanical mute Keyboard | |
Mouse | Touchpad | Touchpad | |
Switch Mode | Hotkey , OSD Menu | Hotkey , OSD Menu | |
Auto-scanning interval | 1-255 second(OSD adjustable ) | ||
LCD resolution | 1280 *1024 @75HZ | 1-255 second ( OSD adjustable ) | |
Cable Port(CAT5 connected network cable ups to 200M ) | Local console | Keyboard / Mouse/ Display (2*USB +1* HDB-15 female ) | |
Connector port | 8 /16 /32 * RJ45 ( CAT5 port ) | ||
Power supply | 1 * 3 pin AC power supply socket | ||
Support Daisy-chain series connectors (8 level ) | |||
Panel | Size | 19''TFT LED | |
Max color | 16.2M | ||
Brightness | 300nit | ||
Contrast ratio | 700:01:00 |
A KVM Switch is a hardware device, used in data centers, that allows the control of multiple computers from a single keyboard,monitor and mouse (KVM).[5] This switch then allows data center personnel to connect to any server in the rack. A common example of home use is to enable the use of the full-size keyboard, mouse and monitor of the home PC with a portable device such as a laptop, tablet PC or PDA, or a computer using a different operating system
Products Description
--KVM (keyboard, video ,mouse ) access over IP and analogous telephone line (modem needed) .
--Full control under any OS, in BIOS mode , during boot, at Blue Screen
--256 bit SSL encryption of all transmitted data and certificate management
-- Port to connect a user console for direct analogous access to KVM switch
--Can be used with most standard KVM
--To switch the host computer though the hotkey or OSD menu, which can manage up to 1024 computers.
-- Password security protection, only authorized users can view and manage on-line computer.
---Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc
---Support various operating system: Microsoft, Linux, Unix, etc
--Full control under any OS, in BIOS mode , during boot, at Blue Screen
--256 bit SSL encryption of all transmitted data and certificate management
-- Port to connect a user console for direct analogous access to KVM switch
--Can be used with most standard KVM
--To switch the host computer though the hotkey or OSD menu, which can manage up to 1024 computers.
-- Password security protection, only authorized users can view and manage on-line computer.
---Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc
---Support various operating system: Microsoft, Linux, Unix, etc
Details Images















Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
