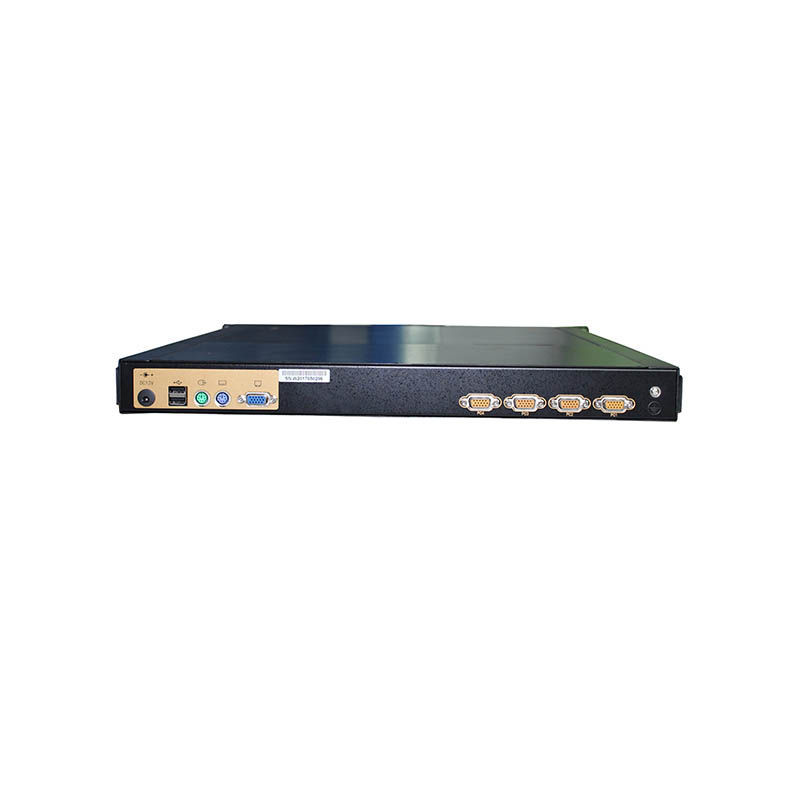

17 Inch 4 ports Rackmount KVM Console

Product Description

Specification
Model
BN-KVM1704U
BN-KVM-1716C
Computer connect
  Direct : 4 (Max:128)
Keyboard
104 Mechanical mute Keyboard
104 Mechanical mute Keyboard
Mouse
Touchpad
Touchpad
Switch Mode
Hotkey , OSD Menu
Hotkey , OSD Menu
Auto-scanning interval
1-255 second ( OSD adjustable )
LCD resolution
1280 *1024 DDC2B
1-255 second ( OSD adjustable )


Cable Port
Local console
 Keyboard / Mouse/ Display
(2*USB +2*PS/2+1* HDB-15 female )
Connector port
1/ 4 / 8 /16 * HDB-15 female ( Yellow )
Power supply
1 * 3 pin AC power supply socket



Panel
Size
17’’ TFT LED
Resolution
1024 * 1280
Max color
16.7M
Contrast ratio
700:1
Power input
DC12V input ( AC100-240V 47-63Hz, 35W ) optional


Work environment
Operating Temp
-10℃~60℃
Storage Temp
-20℃~70℃
Humidity
0%-95%RH
Power input
DC12V input ( AC100-240V 47-63Hz, 35W ) optional

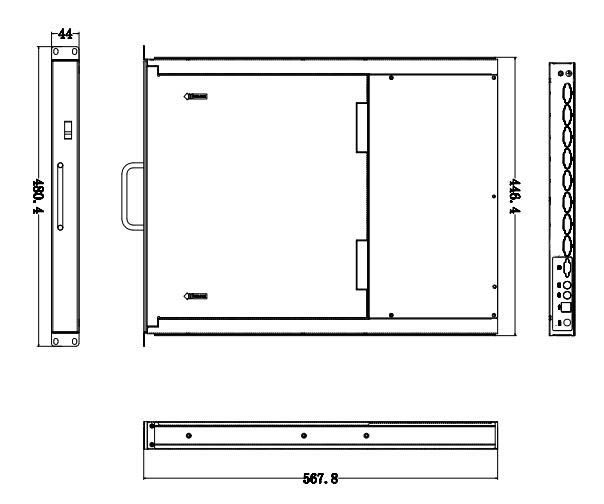

Dimension(L x W x H)
448*480.4*44mm(KVM-1701M); 567.8*480.4*44mm(KVM-1704M/ 1708M/ 1716M )
Package (L x W x H)
708mm*608mm*195mm
Certificate
CE , FCC , RHOS
A KVM Switch is a hardware device, used in data centers, that allows the control of multiple computers from a single keyboard,monitor and mouse (KVM).[5] This switch then allows data center personnel to connect to any server in the rack. A common example of home use is to enable the use of the full-size keyboard, mouse and monitor of the home PC with a portable device such as a laptop, tablet PC or PDA, or a computer using a different operating system
Products Description
--KVM (keyboard, video ,mouse ) access over IP and analogous telephone line (modem needed) .
--Full control under any OS, in BIOS mode , during boot, at Blue Screen
--256 bit SSL encryption of all transmitted data and certificate management
-- Port to connect a user console for direct analogous access to KVM switch
--Can be used with most standard KVM
--To switch the host computer though the hotkey or OSD menu, which can manage up to 1024 computers.
-- Password security protection, only authorized users can view and manage on-line computer.
---Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc
---Support various operating system: Microsoft, Linux, Unix, etc

Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Contact us if you need more details on Kvm Console. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about 17 inch Kvm、Rackmount Kvm. If these products fail to match your need, please contact us and we would like to provide relevant information.
